HARDWARE

FEATURES

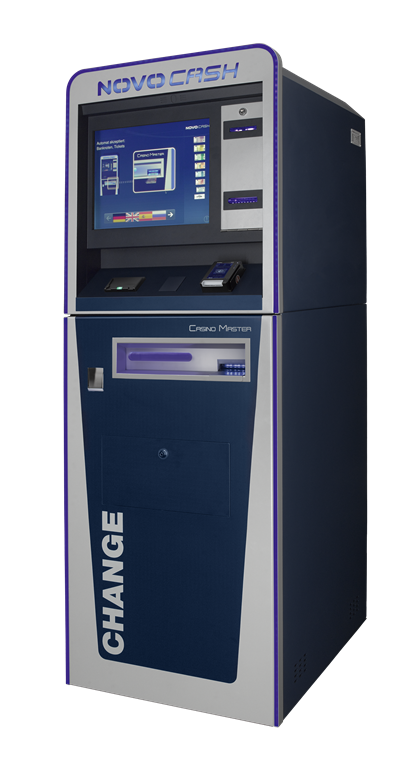

NOVO CASH CASINO MASTER

CASH HANDLING

Key Features

  • TITO: issuance / redemption of tickets
  • Cashless: cash to card / card to cash
  • Biometrics: cash to fingerprint / fingerprint to cash
  • Money changer
  • Bank card, contactless
  • Maximum security storage of banknotes

Main Unit

  • High-security cabinet with massive steel vault
    All banknotes secured in vault fitted with electronic lock
  • 19“ touchscreen display
  • Fast-action banknote dispenser CDM 6240
    5 cassettes / 5 denoms with up to approx. 2,200 notes per cassette
    (max. 11,000 notes total)
    Payout note by note (spray dispensing)
    Very fast (7 to 8 notes per second)
  • RFID card system for service functions
  • Banknote validator
    JCM UBA Pro / Cash box 900 notes
    JCM iPRO / Cash box 900 notes
    JCM iVIZION / Cash box 900 notes

Options

  • Coin hopper unit available up to 3 hoppers
    Extensions to maximise coin stock

VENUE MANAGEMENT

  • RFID card reader for service functions
    e.g. staff accounts: deposit and withdrawal
    Player card compatibility
  • ITHAKA Epic 950 ticket printer
    TITO tickets, receipts, statistics print outs
    Change of paper via front access
  • Receipt printer
  • Intregration of card reader (pull through) plus
    NOVO Vision fingerprint modul possible
  • Integration of bank card payment device possible / PIN Pad

THE TECHNOLOGY

Modern PC and Software Technology

  • Modern industrial PC
    Reliable fanless Linux PC with SSD
    Uninterruptible Power Supply (UPS)
  • NOVO Cash X-Software concept
    Service interface for a wide range of settings
    Documentation of all change operations
    Extensive statistics
    Simple and ergonomic cashier interface
    Status and function messages by e-mail
    Internet connection and thus remote enquiry, remote
    maintenance, remote update possible
    Extensive analysis options for technicians

      NOVO CASH SECURITY CLASS III+

      • Massive steel vault for banknotes
        Electronic locking system (4-eye principle)
      • Front-service
      • All cash components lockable
      • High resistance to breaking open
      • Reliable Linux PC with SSD without fan and hard disk
      • Dimensions: Height: 179cm / Width: 125cm / Depth: 80cm (incl. spacers)
      • Weight (unfilled): 410kg

      DESIGN

      • Blue front panel
      • optional: coloured front design BLUE CIRCLE or individual
        front design according to customer requirements

      Technical Data

      • Cabinet: 65 cm x 184 cm x 94 cm (W x H x D)
      • Weight: 500 kg (depending on configuration)
      • Power Supply: 110-230V
